Audio and Visual

The following page contains technical specifications for audio and visual at the Cerritos Center for the Performing Arts. For additional information, please contact the CCPA Audio Department.

Power

All power locations are transformer isolated camlok outputs with disconnect switches.

• 200A, 120/208V, 3-phase, 5 wire upstage right
• 200A, 120/208V, 3-phase, 5 wire under stage right
• 200A, 120/208V, 3-phase, 5 wire under first balcony House Left near F.O.H. mix position

House Mix and Processing

• House Console: Digico Quantum 338Pulse with Waves Superrack Soundgrid and Titan Server
• House Mix Position: Rear center of Orchestra Section in front of balconies on variable-height lift. House equipment sits on air-castered wagon and can be easily cleared to make space for road equipment.
  • Dimensions: 18' wide by 8'6" deep
• IR Audience Listening System-RF Transmitter (T-Coil Compatible): Listen Technologies; available from front of house staff in lobby
• Paging: Available to all dressing rooms and backstage areas; controlled from Stage Manager's Desk
• Stage Manager's Desk: Mobile, with connections available Stage Left or Right. Equipped
  with intercom, house/work light controls, backstage paging and
  stage video.
• Communications System: Clear-Com Arcadia w/ (10) Freespeak and (10) Helixnet beltpacks
• Show Video Relay: Supplies video program to front of house and backstage areas
• Show Audio Relay: Supplies audio program to front of house and backstage areas

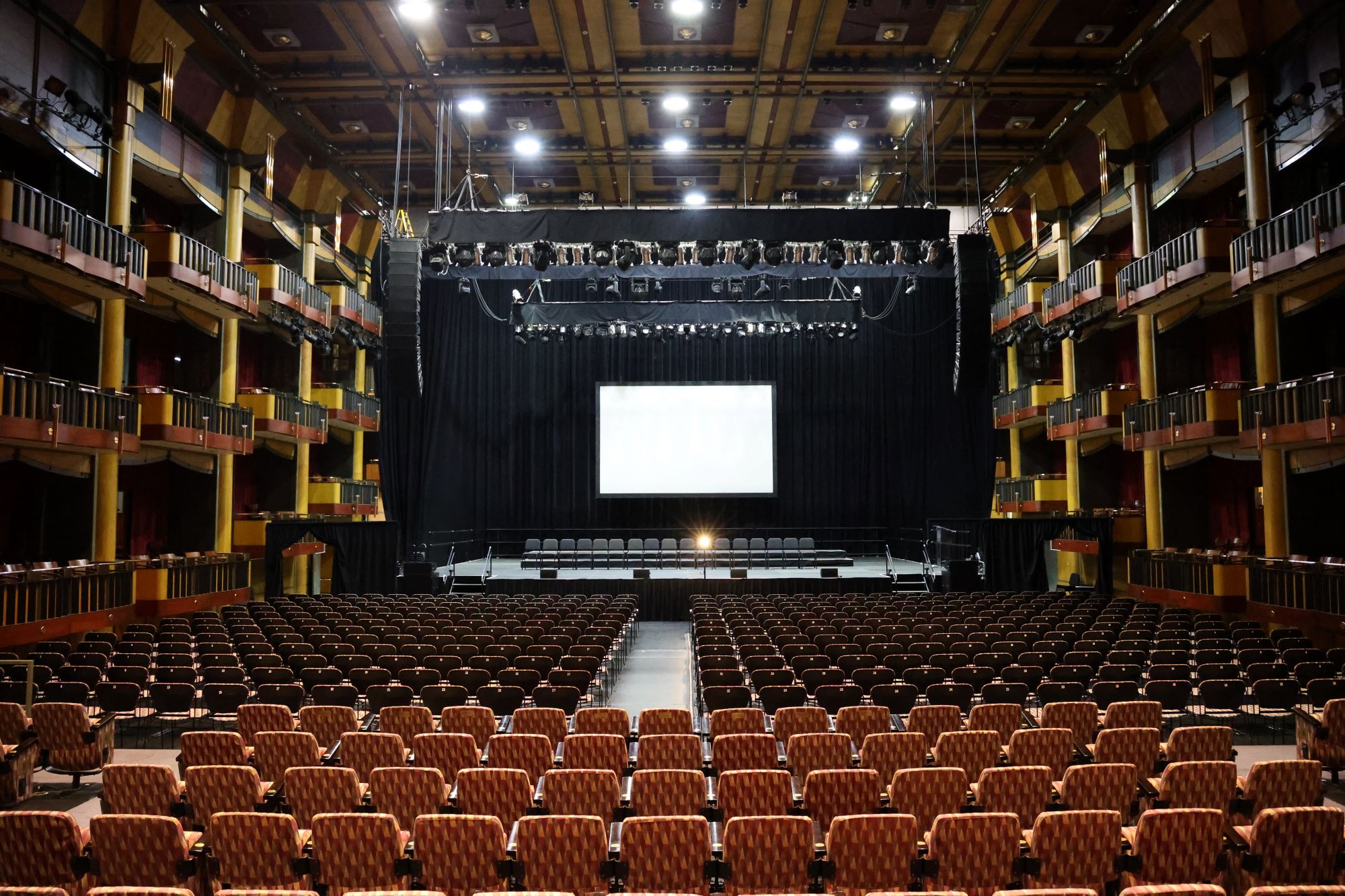

Arena View from House Mixing Desk

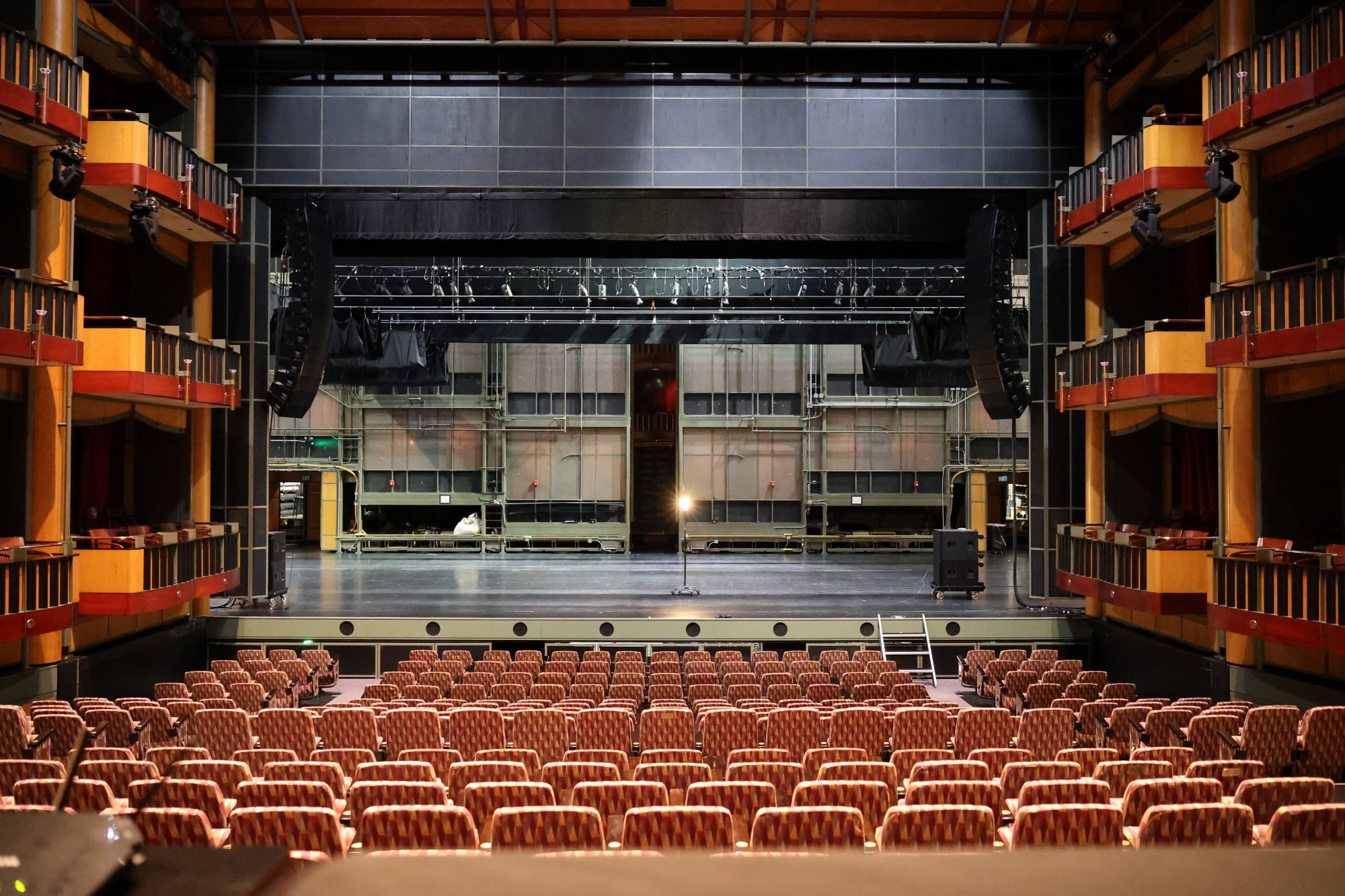

Lyric View from House Mixing Desk

House Speakers

Please note that systems vary with building set-ups. All systems are driven by d&b audiotechnik. Processing is completed through d&b Amps and Lake Processors.

• Flown Line Array Left/Right: (Arena and Lyric Configurations)
  • d&b audiotechnik XSL
•  Subs and Fill on Floor: (Arena Configuration only)
  • d&b audiotechnik XSL Subs and GSL Subs
• Front Fills:
  • Arena: d&b audiotechnik XSL, XSL Subs, GSL Subs
  • Lyric: d&b audiotechnik XSL, XSL Subs, GSL Subs
•  Upper Balcony Cluster (delayed):
  • d&b audiotechnik XSL, XSL Subs, GSL Subs
•  Enhancement Zones (delayed):
  • d&b audiotechnik XSL, XSL Subs, GSL Subs
  • Front fill* - d&b audiotechnik XSL, XSL Subs, GSL Subs

* Side Stacks and Side Fills are set up appropriately for each particular theater configuration (Lyric, Drama, In-The-Round, Arena, Concert and Cabaret).

Stage Inputs and Utility Equipment

• Stage Inputs
  • (2) Digico SD-racks with 32bit Stadius cards 112 inputs x 72 outputs
• Utility Equipment
  • Allen & Heath SQ5, SQ6 with (2) DX16/8 stageboxes
  • Whirlwind 58 channel 2-Way Analog Splitter

Video Equipment

• (2) Christie Digital Roadster WU14K-M DLP Projectors; 1920x1200 Hanging Position on the front of the Gold Level Balcony rail; 4.1-6.9 lenses allow for house screens to hang in most configurations- Double stack available; Hard line SDI, power and Network installed to hang location
• (1) Christie 118-100114-XX-ILS 3-CHIP DLP PROJECTOR LEN (1895-36)
• (2) 21’w x 16’h; 16:10 Fast Fold Truss Front projection screens
• Blackmagic ATEM Television Studio Pro HD
• Blackmagic Smart Hub 12 x 12
• Blackmagic Web Presenter
• Blackmagic ATEM Television Studio HD
• (4) 32” NEC Displays
• (2) 60” LG Display w/ 6’ floor stands
• (2) Macbook Pro laptops w/ Keynote and Playback Pro
• Windows 10 Thinkpad w/ Powerpoint
• Miscellaneous SDI Distribution amplifiers, HDMI/SDI convertors; Decimators; SDI and HDMI Cables

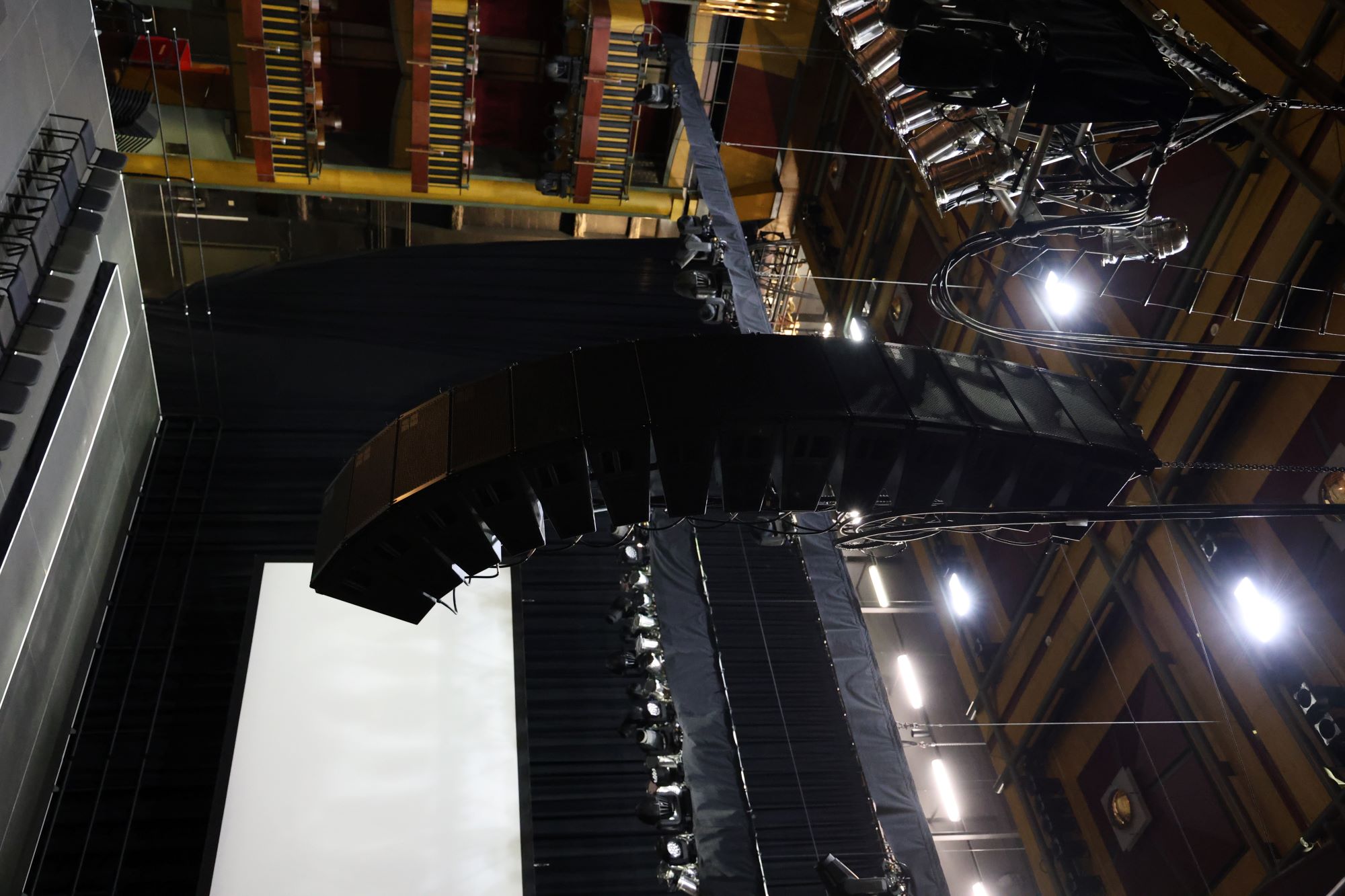

Image of Line Array

Please note that the pictured array is for the Arena Configuration. The same cabinets are utilized for Lyric, but are arranged in a different position.
