The following page contains technical specifications for the lighting at the Cerritos Center for the Performing Arts. For additional information, please contact the CCPA Electrics department regarding availability of moving light packages.

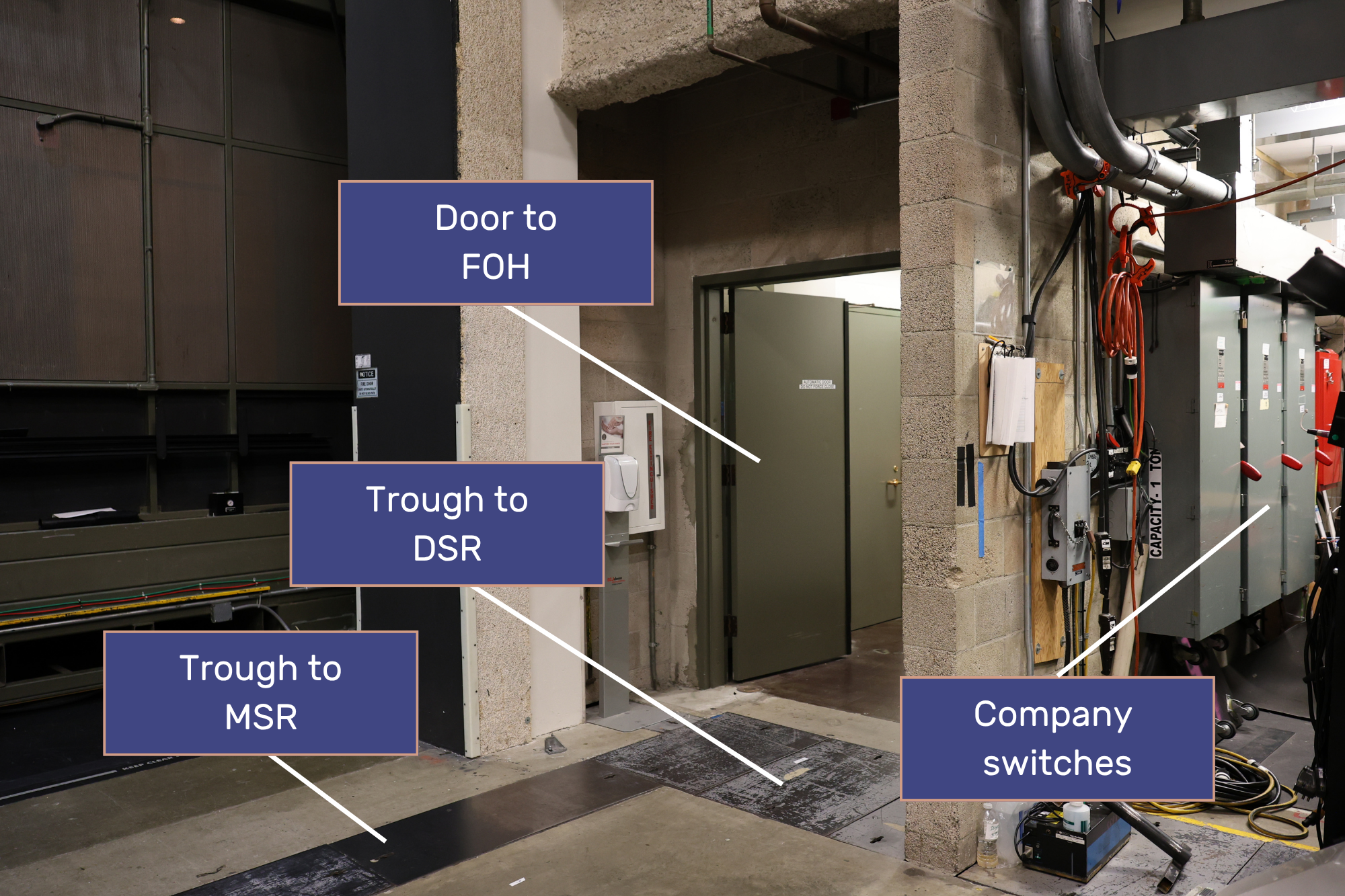

Road Power Disconnects

Lighting Power

Three (3) switches -- each rated: 400A 120/208V, 3 phase, 5 wire
Located in scene storage off-stage right w/ cable run 25' through
Floor trough to down-stage-right or 75’ to mid-stage right

Additional Power Locations

400A, 120/208V, 3 phase, 5 wire under stage left (-9 level)
400A, 120/208V, 3 phase, 5 wire under grand tier House Right
400A, 120/208V, 3 phase, 5 wire stage right pin rail (+42’)
400A, 120/208V, 3 phase, 5 wire stage right pin rail (+42’)
200A, 120/208V, 3 phase, 5 wire scene storage (Truck/ Bus Power)
100A, 120/208V, 3-phase, 5 wire upstage left (Chain Motor Power)
(2) 30A, 120/208V, 3 phase, 5 wire 3rd floor booth

Audio Power (Transformer Isolated)

200A, 120/208V, 3-phase, 5 wire upstage right
200A, 120/208V, 3-phase, 5 wire under stage right (-9 level)
200A, 120/208V, 3-phase, 5 wire F.O.H. under grand tier near house mix position (Party Store)

Production Dimmers

ETC Sensor Dimmers on dimmer-per-circuit basis.

Production Total: 612 dimmers @ 2.4 Kw each; 34 dimmers @ 6.0 Kw each (Please note: Not all dimmers are available in each configuration)
Production Dimmer Control:
- Main Control Console:
  - ETC Cobalt 20~ 4,096 outputs, 20 motorized masters per page
    ETC Net3
  - DMX connection points located: Lighting control booth (on 2nd floor); Under stage left and right (for on-stage operation); Stage Right Rear of auditorium, orchestra level (for F.O.H. mix operation)
  - Additional ETCNet3 connections Mid Rail SR and FOH
- Focus Remote: ETC remote via Wi-Fi
- F.O.H. Transfer Panel:
  - Located off-stage right in scene storage
  - Allows access to 113, 20 amp, F.O.H. circuits, odd numbers only [1,3,5,...225]

Architectural Lighting

House light dimmers: (86) ETC dimmers @ 2.4 kw each. House/work light control: either main or back-up control consoles, or ETC Unison panels located at lighting control booth, upstage left panel or stage managers desk.

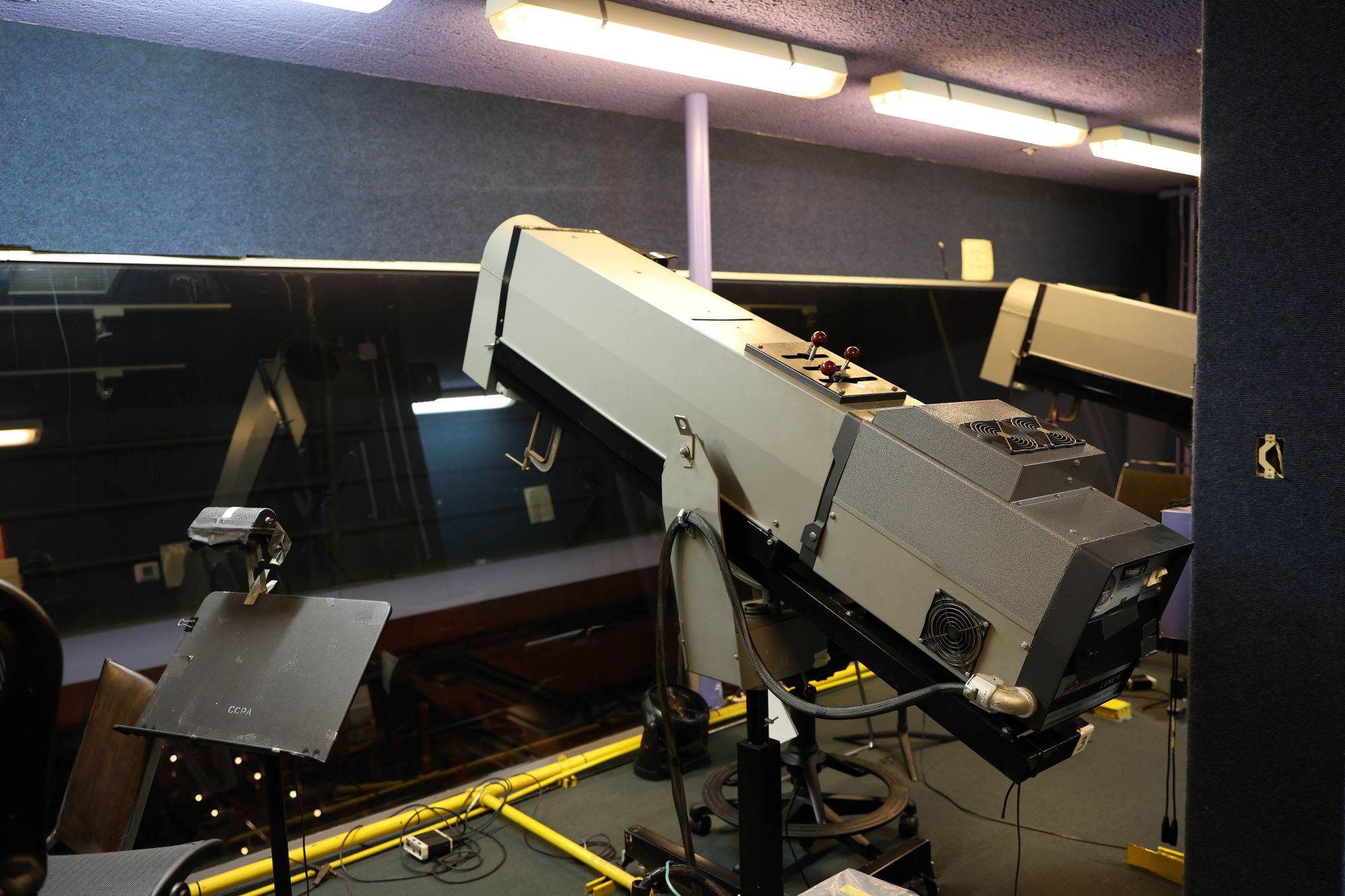

Follow Spotlights

(4) Strong Super Trouper, 2Kw Xenon~ Spot Booth

Lighting Equipment

Lighting instruments (inventory subject to change):

Rep. Hang Inventory

Front of House:

(8) Source 4 10° 750W
(96) Source 4 19° 750W
(20) Source 4 26° 750W
(4) PAR 64
(4) Colortran 5° ERS 1kW

Floating Inventory

Ellipsoidals
- (28) Source 4 19° LENS TUBE
- (24) Source 4 WRD Color II LED (RGBA)
- (162) Source 4 750W
- (68) Source 4 26° LENS TUBE
- (78) Source 4 36° LENS TUBE
- (12) Source 4 50° LENS TUBE
- (2) Source 4 5° Lens Tube
Wash Lights
- (50) PAR 64 (Various 1kW lamps)
- (60) Colortran 8" Fresnel, 2 kW
- (20) Colortran 6" Fresnel, 1 kW
- (26) PAR 64 LED (RGBWL)
Cyc Lights & Strip Lights
- (8) Colortran Far Cyc, 4-circuit, 1kW
- (8) Colortran Far Cyc, 1-circuit, 1kW
- (6) Altman T3 Ground Row
  - (3cir/3lamp) 750W
- (7) MR16 Ministrips (3cir/10 lamp)
  - 75W EYS (spot)
- (12) ADJ Encore LB15IP LED Strip (RGBL)
Miscellaneous
- (10) 8' PRT w/ 1 row of 6 1kW PAR 64
- (5) 8’ PRT w/ 2 rows of 6 1kW PAR 64
- (10) ACL Bars~ 4 lamps wired in series
- (4) 2 Lamp Molefays (2-M/N 2 N/N)
- (1) MDG Atmosphere Hazer
- (2) Martin Atomic 3000 Strobe
- (4) ADJ Jolt Panel FX2
- (8) ADJ Jolt Bar FX2
Moving Lights
- (10) Chauvet Maverick Force 2 Profile
- (12) Chauvet Maverick Force 1 Spot
- (18) Chauvet Rogue R2X Wash
- (12) Chauvet Rouge Outcast 1L Beam
- Check with CCPA Lighting Department about availability of Moving Light fixtures

Accessories include: cable, two-fers, adapters, iris, side arms, barndoors, booms, and bases.
